Oilfield Gabion Hydraulic Drop Structure

Featured Projects

·

Complete

·

Fort Saint John, British Columbia

Image loading
Aerial view of the completed stepped gabion hydraulic drop structure on a graded slope in Fort Saint John, British Columbia
Image loading
3D CAD model of the gabion hydraulic drop structure designed by SweetTech in Fort Saint John, British Columbia

Client

Tourmaline Oil Corp.

Tourmaline Oil Corp.

Capital Cost (CAD)

TBD

TBD

Location

Fort Saint John, British Columbia

Fort Saint John, British Columbia

Role/Position

Engineer of Record

Engineer of Record

Duration

May 2018

May 2018

–

–

October 2018

October 2018

Project Lead

Eric Sweet, M.Eng., P.Eng.

Eric Sweet, M.Eng., P.Eng.

Service area(s)

Construction Engineering

Construction Engineering

Environmental & Regulatory

Environmental & Regulatory

Geotechnical

Geotechnical

Industrial Development

Industrial Development

Scope of work

Construction Care of Water

Construction Cost Estimating

Construction Dewatering & Drainage

Construction Project Management Support

Construction Sequencing & Execution Planning

Flood Mitigation

Full Project Life Cycle Execution

Geotechnical Investigations

Construction Care of Water

Construction Cost Estimating

Construction Dewatering & Drainage

Construction Project Management Support

Construction Sequencing & Execution Planning

Flood Mitigation

Description

SweetTech was retained by Tourmaline Oil Corp. to perform detailed engineering design and construction monitoring services for a gabion hydraulic drop structure at a new natural gas processing facility. The drop structure transports surface runoff water down a steep 2H:1V slope. The Q25 design flow is over 1 cubic-metre per second with a structure design life of 25 years.

SweetTech prepared IFC drawings, a 3D CAD model, and provided ongoing construction inspection, monitoring, and support in the field during the construction of the drop structure.

The project was featured in EGBC’s Innovation magazine for May-June 2019.

Please note: Project details are shared where agreements allow. Some specifics remain confidential and will be redacted. Content may be updated as work progresses or details become available.

Please note: Project details are shared where agreements allow. Some specifics remain confidential and will be redacted. Content may be updated as work progresses or details become available.

Gabion hydraulic drop structure under construction with grading equipment in Fort Saint John, British Columbia
Image loading
Gabion hydraulic drop structure under construction with grading equipment in Fort Saint John, British Columbia
Gabion hydraulic drop structure under construction with grading equipment in Fort Saint John, British Columbia
Image loading
Gabion hydraulic drop structure under construction with grading equipment in Fort Saint John, British Columbia
Crew installing stepped gabion baskets on the drop structure slope in Fort Saint John, British Columbia
Image loading
Crew installing stepped gabion baskets on the drop structure slope in Fort Saint John, British Columbia
Crew installing stepped gabion baskets on the drop structure slope in Fort Saint John, British Columbia
Image loading
Crew installing stepped gabion baskets on the drop structure slope in Fort Saint John, British Columbia

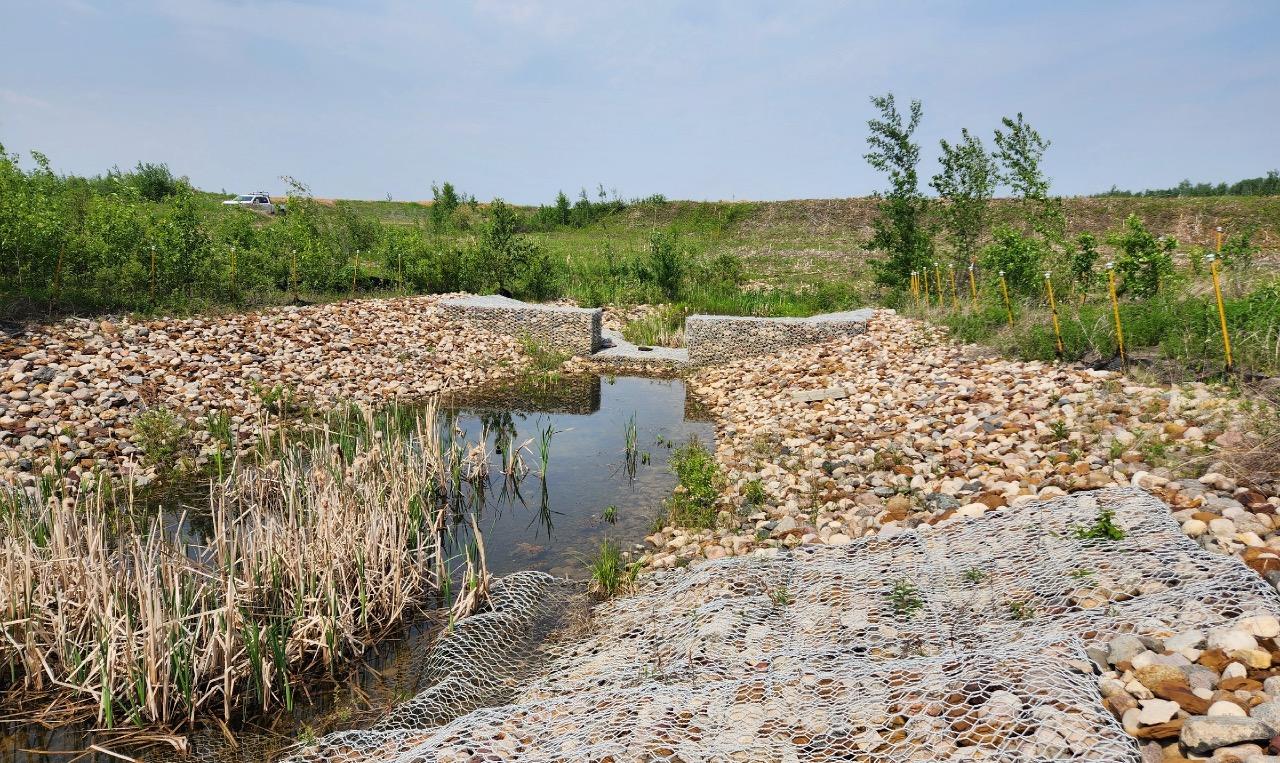

Completed gabion drop structure with established vegetation and pooled water in Fort Saint John, British Columbia
Image loading
Completed gabion drop structure with established vegetation and pooled water in Fort Saint John, British Columbia
Completed gabion drop structure with established vegetation and pooled water in Fort Saint John, British Columbia
Image loading
Completed gabion drop structure with established vegetation and pooled water in Fort Saint John, British Columbia
Vegetated gabion hydraulic drop structure conveying runoff after construction in Fort Saint John, British Columbia
Image loading
Vegetated gabion hydraulic drop structure conveying runoff after construction in Fort Saint John, British Columbia
Vegetated gabion hydraulic drop structure conveying runoff after construction in Fort Saint John, British Columbia
Image loading
Vegetated gabion hydraulic drop structure conveying runoff after construction in Fort Saint John, British Columbia
